BUILT TO EXPLORE
We took the legendary CBF™ suspension platform somewhere it’s never been before; think XC light, XC efficiency, with the extra dose of that bottomless CBF™ feel. It is over a pound lighter than the Rascal frame and tough enough to inspire confidence on the descents. Its right at home at the start line of a marathon race, all day in the mountains or just rallying the local trails after work. Welcome to the Ranger- a bike that takes modern XC suspension to a whole new level.
115MM REAR TRAVEL
120MM FRONT TRAVEL
THERMOSET CARBON FIBER FRAME MATERIAL
Canfield Balance Formula rear linkage.
The CBF™ focuses the center of curvature in a very finite area on the chainline/top of the chainring, pointing the pedaling forces directly where you want them.

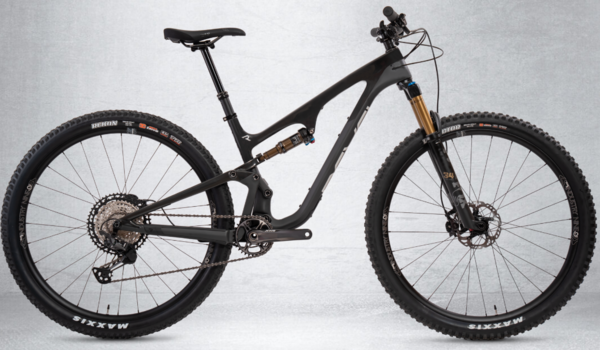

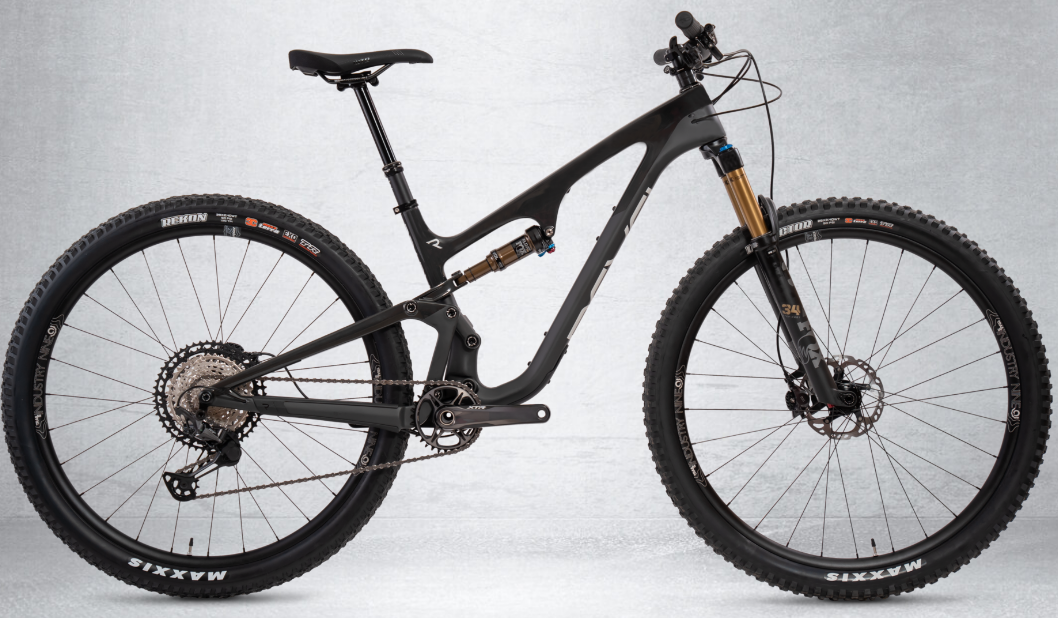

|Frame||Revel Ranger 29? 115mm Travel|
|Fork||Fox Float 34 Step Cast Factory Series Fit4 120mm|
|Headset||Cane Creek 40-series|
|Rear Shock||Fox Float DPS Factory Series|
|Rims/Wheels||Crank Bros Synthesis XCT Alloy Rims Industry Nine 1/1 Hubs|
|Tires||Maxxis Dissector 29? x 2.4? EXO Front, Maxxis Rekon 29? x 2.4? EXO Rear|
|Crankset||Shimano XT M8100|
|Bottom Bracket||Shimano XT MT800|
|Chain||Shimano XT M8100 12spd|
|Rear Derailleur||Shimano XT M8100|
|Rear Cogs||Shimano XT M8100 10-51 12spd|
|Shifters||Shimano XT M8100 12spd|
|Handlebars||RaceFace NEXT R 35 800mm x 20mm Rise|
|Tape/Grips||Lizard Skins Charger Evo Grip Black|
|Stem||RaceFace Turbine R 35 x 40mm|
|Brakes||Shimano XT M8100 2-Piston|
|Saddle||WTB Volt CroMo Black|
|Seat Post||RaceFace Turbine R SM (31.6mm x 125mm) MD (31.6mm x 150mm) LG/XL (31.6mm x 175mm)|
* Subject to change without notice.
