Details
Meet the Ripley, your new best friend for every trail adventure. The award-winning bike has been updated with more travel and slacker geometry, making it even more capable and fun. It rivals the speed of an e-bike uphill while offering snappy, playful performance with 130mm of ultra-efficient dw-link travel. Need to stash your snacks? The Ripley now features internal frame storage for all your stuff. Plus, with expanded size ranges, everyone gets the perfect fit. Whether you’re popping wheelies or conquering climbs, the Ripley is game.
Size Specific Everything
Every rider deserves the same great ride feel, no matter their height or proportions. We use size specific seat tube angles and suspension kinematics to bring incredible balance and speed to all size riders. Even chainstay length and bottom bracket height are tailored to each frame size.
5 Sizes
We've added a third size in the middle of the bell curve to provide a fit that’s just right. With 80% of our riders falling between 5’5” and 6’0”, we introduced a new "Extra-Medium" size. The extra-medium (size 3) now sits in the middle of our size range, while our size five remains the traditional XL.
Flip It
We’ve added more adjustability with a new flip chip - now you can run 29” or 27.5”/29” mixed (MX) wheels on all sizes without compromising the geometry. The Ripley ships with 29” wheels.
DW-Link Suspension
We continue to use the critically acclaimed dw-link suspension platform known for its efficient climbing and excellent downhill performance; it sets the standard for modern mountain bikes.
Our size-specific kinematics make sure every size bike pedals amazing while still keeping things ferociously smooth on challenging trails.
Internal Frame Storage
Get that gear off your back and into your bike with our frame storage system. The latch operates effortlessly, even in cold, muddy conditions while wearing gloves. The door is water-resistant, rattle-free, and robust.
We’ve partnered with Cotopaxi to craft a set of two internal bags for your snacks, tools, or whatever. Cotopaxi is known for high-quality construction and sustainable practices; the bags are crafted from remnants and dead stock, making each bag colorful and unique.
Lifetime Warranty
If it's our fault, we'll fix it. Simple as that.
*Specs may vary from image displayed*

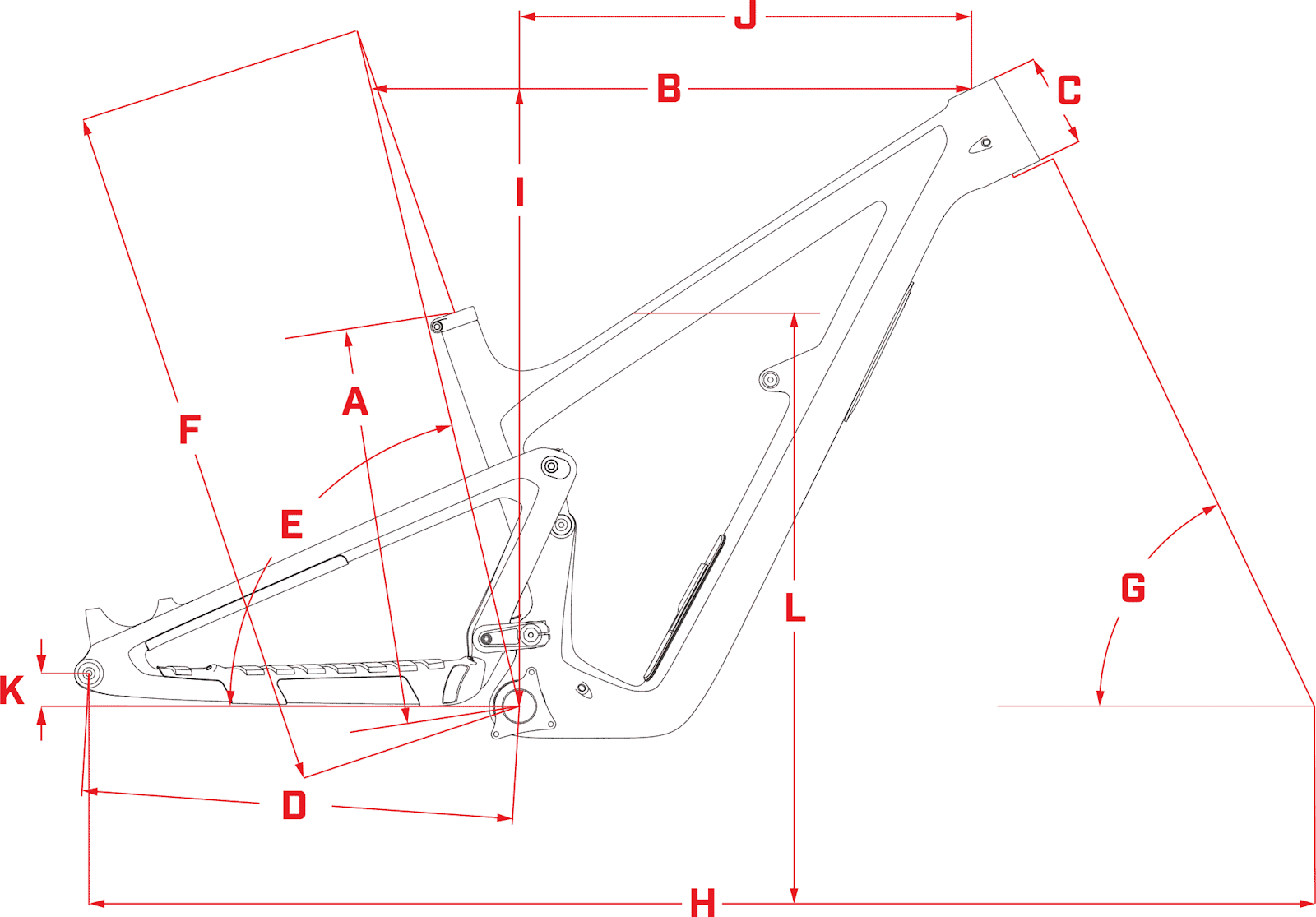

Nominal Size | SM | MD | XM | LG | XL | |
---|---|---|---|---|---|---|
Seat Tube | A | 395 | 400 | 415 | 457 | 477 |
Top Tube | B | 577 | 604 | 629 | 654 | 684 |
Head Tube | C | 85 | 95 | 110 | 125 | 140 |
Chainstay 29" | D | 436 | 436 | 437 | 440 | 442 |
Seat Tube Angle | E | 77.4° | 76.9° | 76.9° | 77.4° | 77.9° |
Saddle Height for Seat Tube Angle | F | 650 | 700 | 745 | 790 | 830 |
Head Tube Angle | G | 64.9° | 64.9° | 64.9° | 64.9° | 64.9° |
Wheelbase | H | 1187 | 1211 | 1241 | 1279 | 1321 |
Stack | I | 613 | 619 | 629 | 640 | 650 |
Reach | J | 440 | 460 | 483 | 511 | 545 |
BB Drop 29" | K | 48 | 45 | 42 | 39 | 36 |
BB Drop MX | K | 28 | 25 | 22 | 19 | 16 |
BB Height* | 326 | 329 | 332 | 335 | 338 | |
Standover | L | 680 | 721 | 744 | 759 | 772 |
Recommended Seatpost Drop | 140 | 170 | 185 | 213 | 213 | |
Crank Length | 165 | 165 | 170 | 170 | 170 | |
Tire Size | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | |
Water Bottle Size | 1 x 22oz | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz |
Small | 5’0”–5’6” |
---|---|
Medium | 5’5”–5’9” |
X-Medium | 5’8”-6’ |
Large | 5’11–6’3” |
X-Large | 6’2”–6’7” |
Specs
Pedals | Sold Separately |
---|---|
Fork | Fox Float 34 Factory Series Grip X 140mm, 29”, 110x15 |
Hubs |
Front Hub Ibis Logo Front Hub, 110x15, 32 Hole Rear Hub Ibis Logo Rear Hub, 148x12, 32 Hole |
Rims | Ibis Send Alloy, 32 hole, 29" XM -> XL, Ibis Send Alloy, 32 hole, 27.5" S & M |
Stem | Ibis 31.8mm |
Chain | Shimano XT M8100 |
Frame | Ripley V5 |
Tires |
Front Tire: Maxxis DHR2 29" x 2.4" Exo TR Rear Tire: Maxxis Rekon 29" x 2.4" Exo TR |
Brakes | Shimano XT M8120 4p |
Rotors | Shimano SM-RT86 180 |
Saddle | WTB Silverado Fusion 142 |
Spokes | Sapim Dlight Double Butted |
Wheels | Send I 29 Alloy Front Wheel 110, Send II 29 Alloy Rear Wheel 148 MS |
Headset | Cane Creek 40: ZS44/ZS56 |
Crankset | Shimano XT M8100 24mm spindle, 30t Alloy Ring |
Seatpost | Bike Yoke Revive Dropper |
Shifters | Shimano XT M8100 |
Chainrings | 30t Alloy Ring |
Handlebars | Ibis 35mm 800mm Hi Fi Bar |
Rear Shock | Fox Float Factory Series, DPS with EVOL, 210 x 52.5 |
Tape/Grips | Lizard Skin Charger |
Brake Levers | Shimano XT M8120 |
Bottom Bracket | Shimano XT MT800 |
Rear Derailleur | Shimano XT M8100 Shadow Plus |
Accessories & Extras | Cotopaxi Stow Bags |
Cassette/Freewheel | Shimano XT 10-51 |
* Subject to change without notice.
Videos
Part Numbers
Option | UPC | MPN |
---|---|---|
Blue Hour / Small / 29-inch | 840345310811 | RLC1BUSXTAL3525 |
Blue Hour / Medium / 29-inch | 840345311252 | RLC2BUSXTAL3525 |
Blue Hour / X-Medium / 29-inch | 840345311320 | RLC3BUSXTAL3525 |
Blue Hour / Large / 29-inch | 840345311399 | RLC4BUSXTAL3525 |
Blue Hour / X-Large / 29-inch | 840345311467 | RLC5BUSXTAL3525 |
Green Flash / Small / 29-inch | 840345310835 | RLC1GNSXTAL3525 |
Green Flash / Medium / 29-inch | 840345310910 | RLC2GNSXTAL3525 |
Green Flash / X-Medium / 29-inch | 840345310989 | RLC3GNSXTAL3525 |
Green Flash / Large / 29-inch | 840345311054 | RLC4GNSXTAL3525 |
Green Flash / X-Large / 29-inch | 840345311122 | RLC5GNSXTAL3525 |
